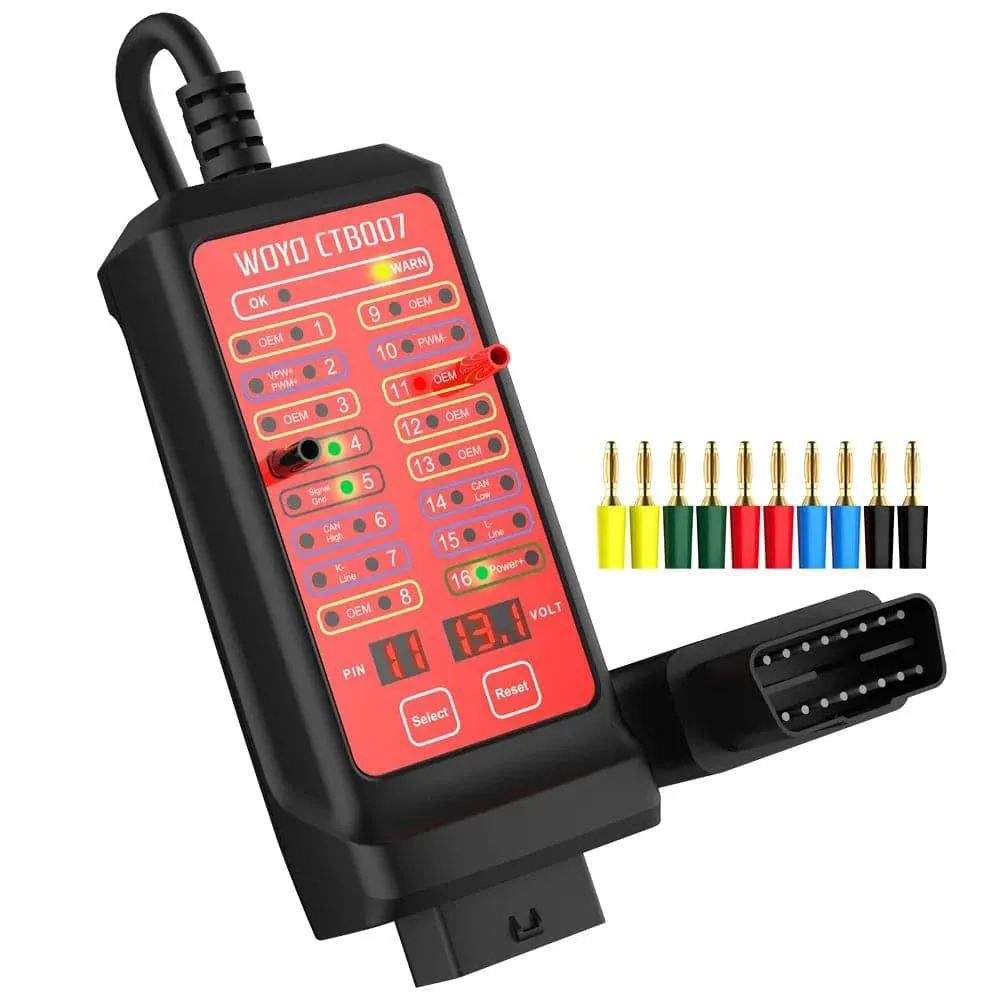

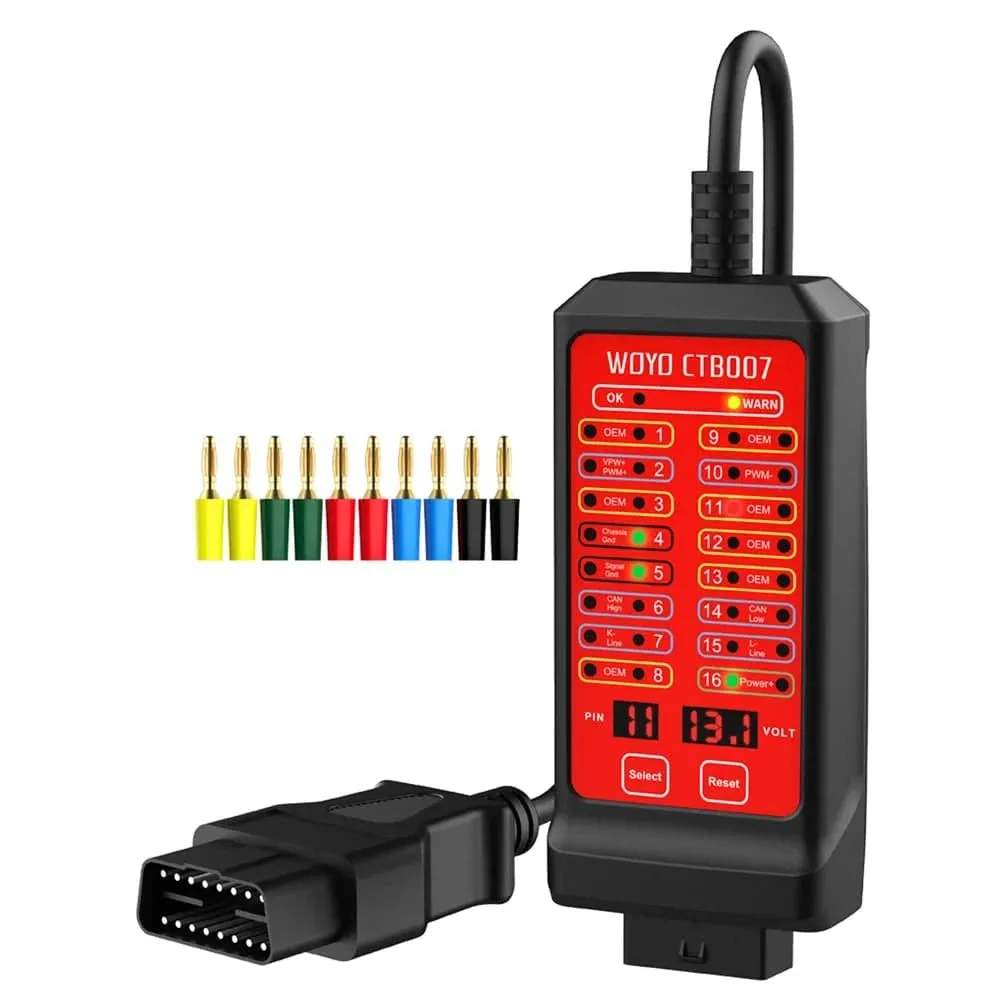

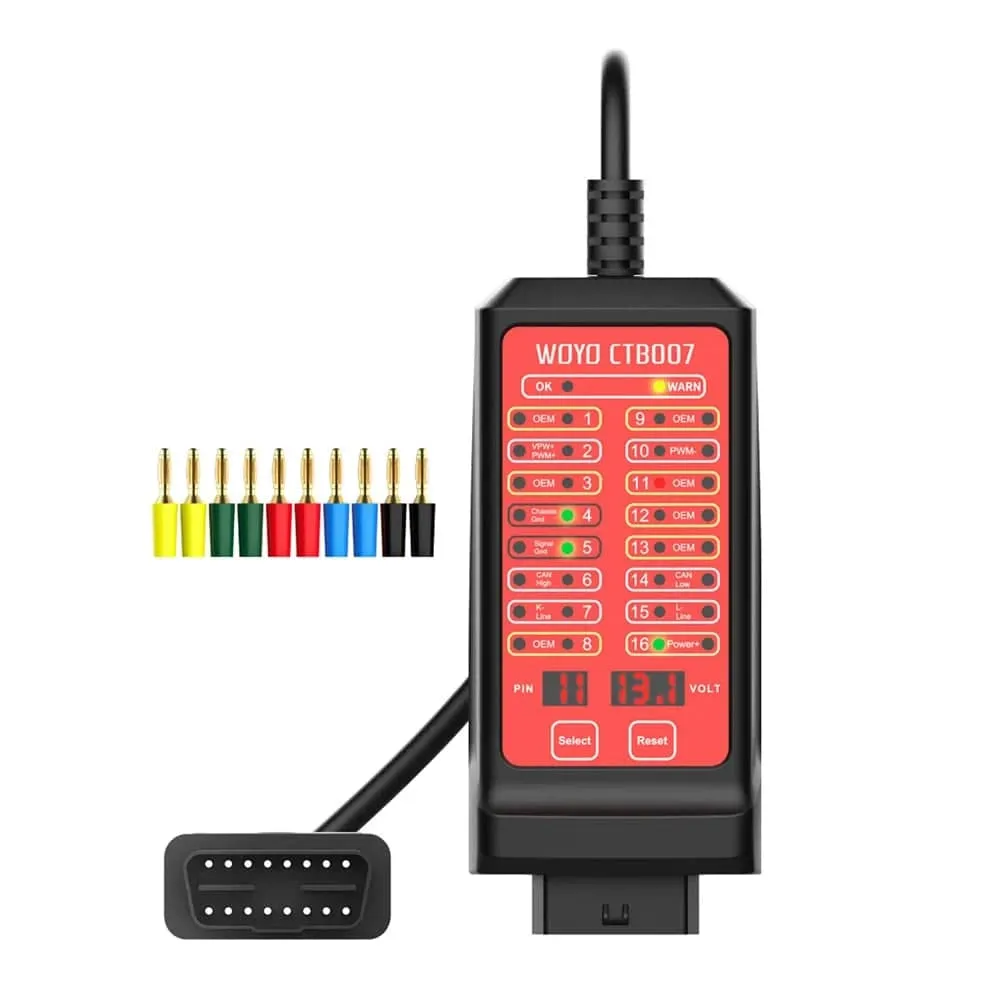

This 12V 24V Portable CAN Tester is an essential tool for vehicle diagnostics, designed to simplify the process of diagnosing CAN bus circuits. With a robust 16-pin configuration, it allows for quick and reliable connections during vehicle maintenance, ensuring seamless operation whether you're working with 12V or 24V systems. This versatile device is perfect for automotive professionals and enthusiasts alike, providing critical insights into vehicle electronics.

Features:

• Wide Compatibility: Works with both 12V and 24V systems, making it a versatile choice for various vehicles.
• Error Detection: Tests the DLC (On-Board Diagnostics port) for errors, identifying pin shorts and reverse polarity before connecting to other diagnostic devices.
• Real-Time Monitoring: Displays communication signals on assigned pins, enabling quick fault location and eliminating the need for a digital multimeter for voltage measurements.
• 16 Pin Design: Facilitates quick connections during maintenance and diagnosis processes.
• Voltage Monitoring: Monitors On-Board Diagnostics input voltage with alarms for high and low voltage conditions.

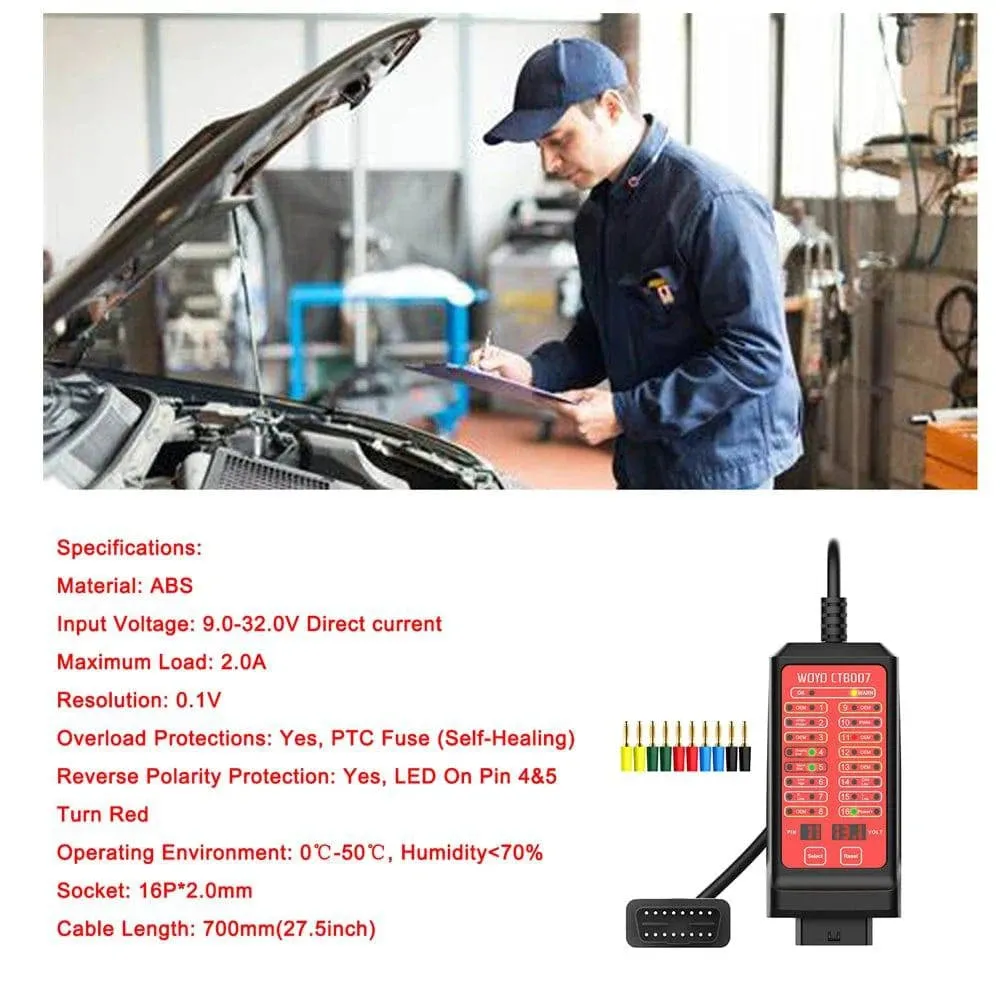

Specifications:

• Material: ABS
• Input Voltage: 9.0-32.0V Direct Current
• Maximum Load: 2.0A
• Resolution: 0.1V
• Overload Protections: Yes, with PTC Fuse (Self-Healing)
• Reverse Polarity Protection: Yes, indicated by LED on Pin 4&5 turning Red
• Operating Environment: 0℃-50℃, Humidity < 70%
• Socket: 16P*2.0mm
• Cable Length: 700mm (27.5inch)
• Package Size: 190 * 130 * 47mm / 7.5 * 5.1 * 1.9in
• Package Weight: 350g / 12.3ounce

Packing List:

• 1 * CAN Bus Circuit Tester

Note: Ensure proper handling and connection to avoid damage to the device and vehicle electronics.
