Product Description
-

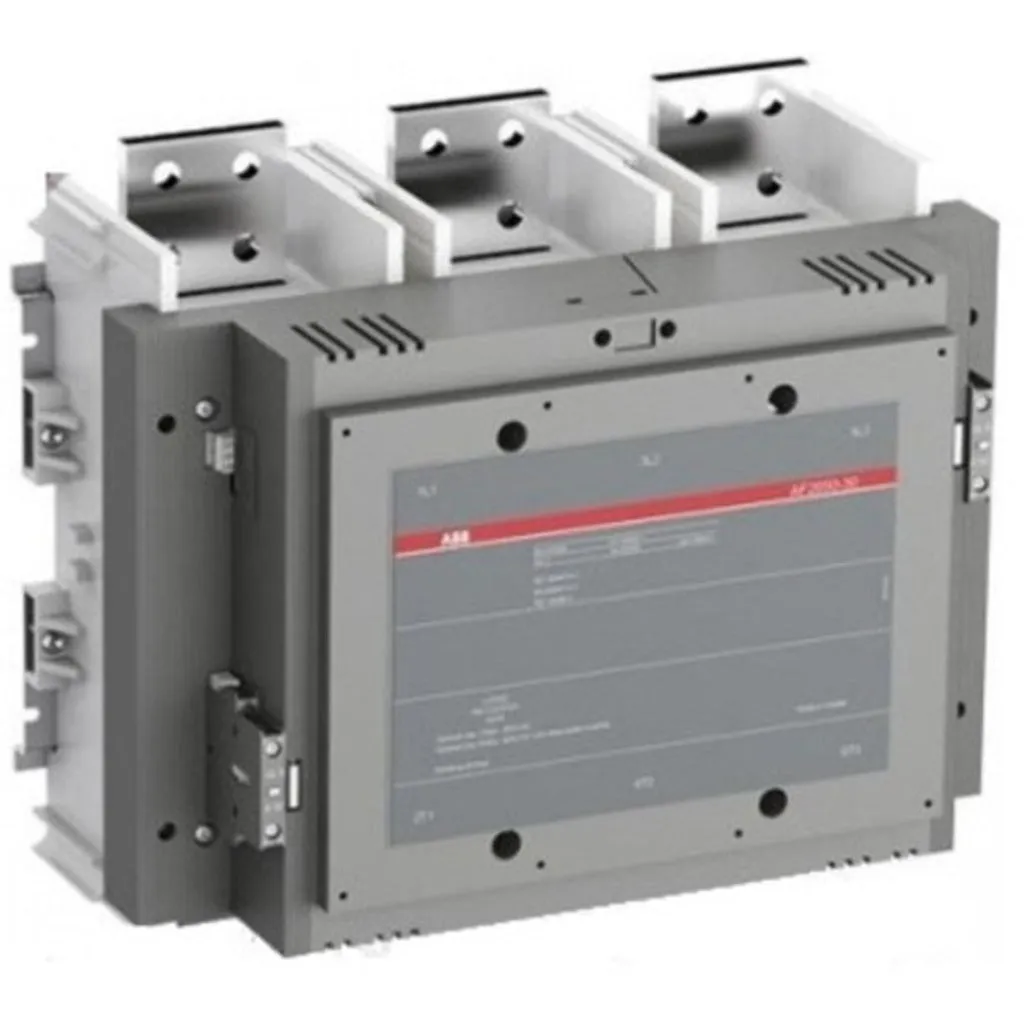

A 3-pole Contactor suitable for DC-1 applications where all three poles must be connected in series in a 1-pole configuration up to max 1000 VDC
-
Number of Main Contacts NO : 1
-
Number of Main Contacts NC : 0
-
Number of Auxiliary Contacts NO : 1
-
Number of Auxiliary Contacts NC : 1
-
Rated Operational Voltage : Main Circuit 1000 V
-
Conventional Free-air Thermal Current (Ith) : acc. to IEC 60947-4-1, Open Contactors q = 40 °C 1650 A
-
Rated Insulation Voltage (Ui) : acc. to UL/CSA 1000 V
-
Rated Impulse Withstand Voltage (Uimp) : Main Circuit 8 kV
-
Mechanical Durability : 0.5 million
-
Maximum Mechanical Switching Frequency : 300 cycles per hour
-
Connecting Capacity Main Circuit : Bar 100 mm
-
Terminal Type : Main Circuit: Bars
-
Product Net Width : 438.0 mm
-
Product Net Depth / Length : 244.0 mm
-
Product Net Height : 392.0 mm
-
Product Net Weight : 33.000 kg
Product Specification
|
Rated Voltage |
Product Id |
Type |
|
24-60V |
1SFL677025R6811 |
GAF1650-10-11 coil 24..60V DC |
|
48-130V |
1SFL677025R6911 |
GAF1650-10-11 coil 48..130V AC/DC |
|
100-250V |
1SFL677025R7011 |
GAF1650-10-11 coil 100..250V AC/DC |
|
250-500V |
1SFL677025R7111 |
GAF1650-10-11 coil 250..500V AC/DC |
