Product Description
-

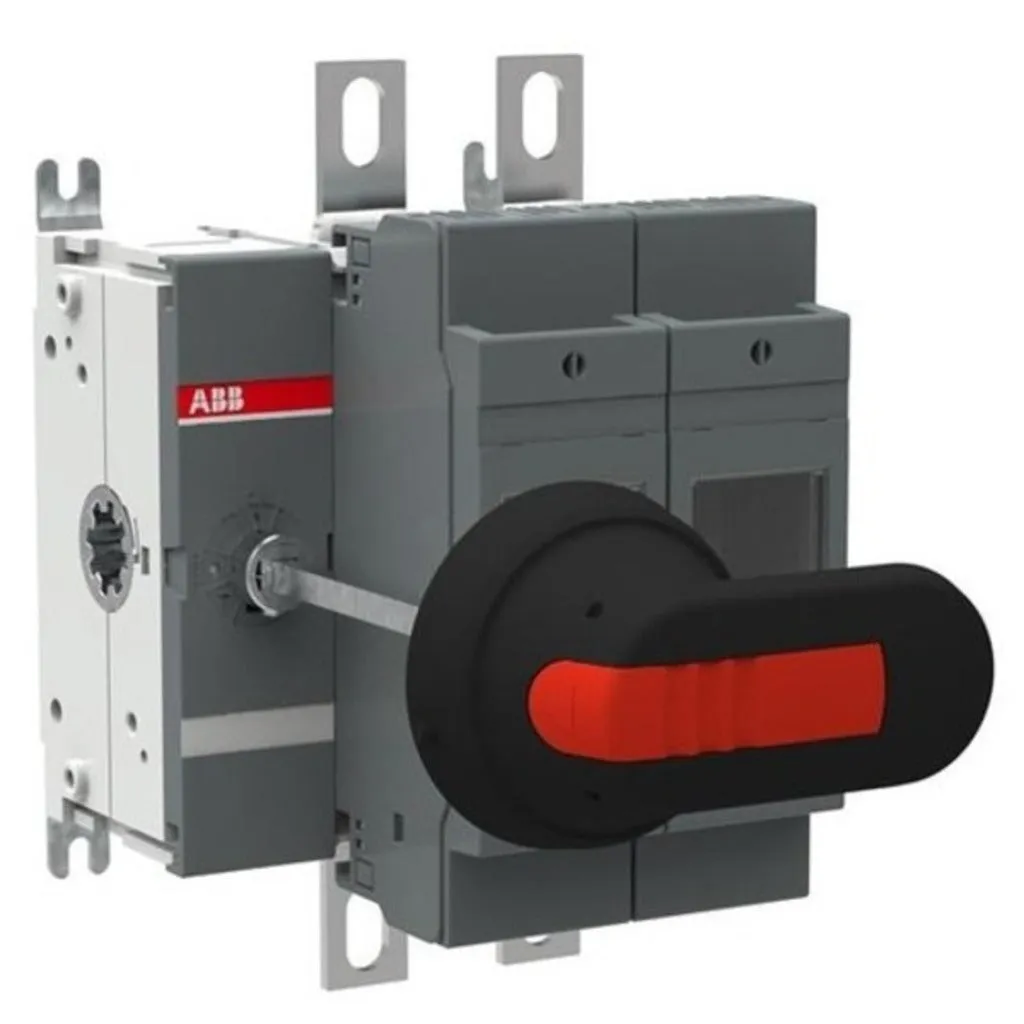

200A-800A SDF supplied with shaft and handle, Mechanism at the end of the switch fuse
-
Rated Impulse Withstand Voltage (Uimp) : 12 kV
-
Rated Insulation Voltage (Ui) : 1000 V
-
Rated Operational Voltage : 500 V
-
Rated Short-time Withstand Current (Icw) : for 1 s 8 kiloampere rms
-
Rated Conditional Short-Circuit Current (Inc) : (690 V) 80 kA
-
Pollution Degree : 3
-
Handle Type : Handle and shaft included
-
Switches Operating Mechanism : 02 (Left Side)
-
Position of Line Terminals : Top In - Bottom Out , Bottom In - Top Out
-
Fuse System : British Standard
-
Operating Mode : Front Operated
-
Standards : IEC 60947-3
-
Mounting Type : Base mounting
-
Number of Poles : 2
-
Terminal Type : Lug terminals
Product Specification
|
Rated Cutrrent (A) |
Fuse Size |
Model |
Product Id |
|
200 |
B1-B2 |
OS200B02P |
1SCA022769R7820 |
|
250 |
B1-B3 |
OS250B02P |
1SCA022769R9440 |
|
315 |
B1-B4 |
OS315B02P |
1SCA022817R3450 |
|
400 |
B1-B4 |
OS400B02P |
1SCA022813R7220 |
|
630 |
C1-C2 |
OS630B02P |
1SCA113529R1001 |
|
800 |
C1-C3 |
OS800B02P |
1SCA022837R6480 |
