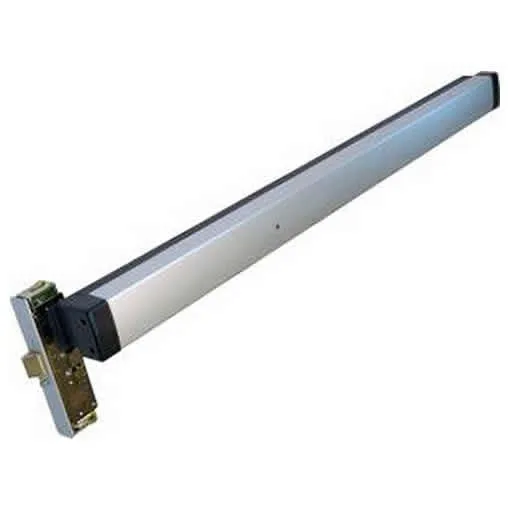

Adams-rite mortise exit device. ANSI/BHMA Grade I. Pushbar length 36-inches standard width bars can be field cut to the next smallest opening width. Materials pushbar made of extruded aluminum, clad or anodized in a variety of finishes. Clear anodized finish.

Features

• Minimum stile 2". Fits narrow, medium and wide stile aluminum doors.
• Exit only function, no entry from outside. Trim available separately
• Handed.
• For 1-3/4" thick doors standard.
• Hex key dogging standard.
• Push bar length can be cut to size in the field.
• Backs available in 31/32", 1-1/8" or 1-1/2".
• Adams Rite exit devices fully meet building codes and ADA guidelines for accessibility.

Specs

• ANSI/BHMA grade 1-UL Listed Life Safety, ANSI/BHMA 156.3
• Projection-2-5/8", 1-5/8" when dogged.
• Pushbar made of extruded aluminum.
• The 8400 was designed to fit standard cutout used for the Adams Rite MS® Deadlock on aluminum stile glass doors.

Finishes

• Aluminum
• Bronze

Installation Challenge Level

  Challenging
Recommended for Experienced Installers, but not rocket science.

Instructions & Templates
