Product Details
＋

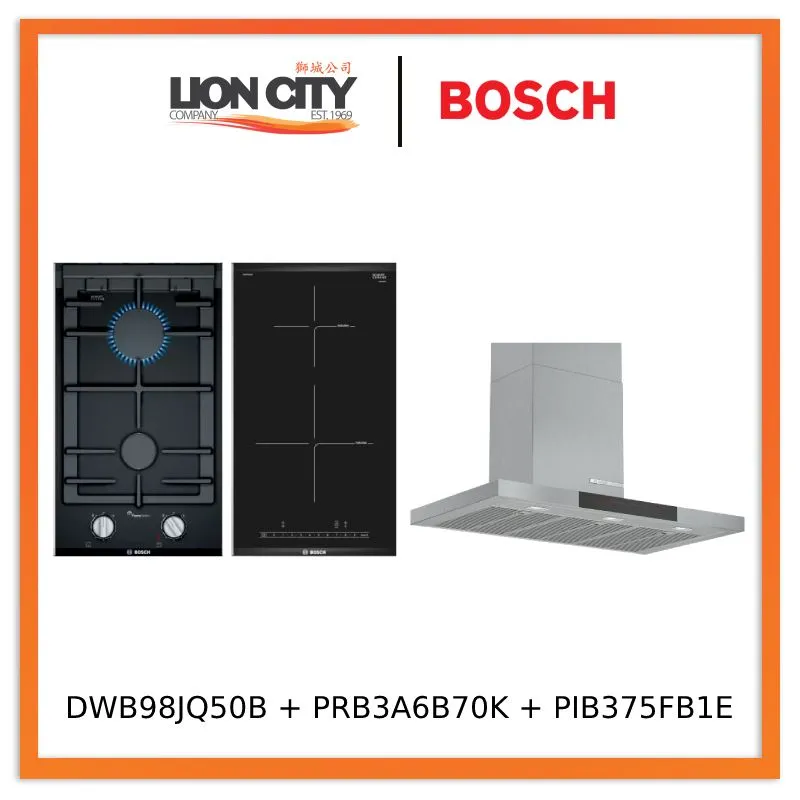

1. DWB98JQ50B
Performance
Comfort:
Heating Functions
3. PKF375CA2E
Performance
- Extraction rate according to EN 61591 ø 15 cm:
- max. Normal use430m³/h
- Intensive844 m³/h

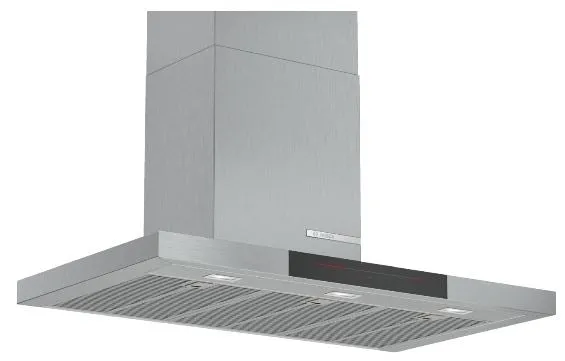

- 90 cm Wall Hood Hood, Silver metallic
Comfort:
- air quality sensor 1.1
- Automatic intensive revert after 6 min.
- Automatic run on for 10 min.
- Easy to clean yes
- softLight
- 3 x 1.5W LED
- Saturation indicator for metal and charcoal filter
- Removable metal grease filter, dishwasher safe
- 3 removable metal grease filters
- Energy Efficiency Class: A

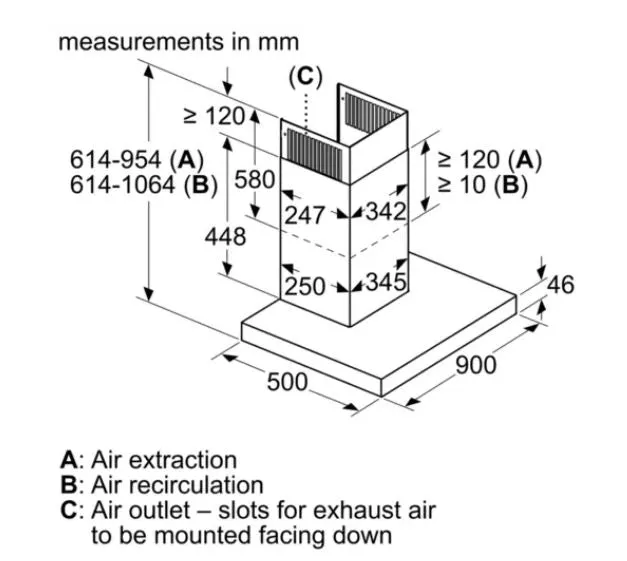

- Dimensions exhaust air (HxWxD mm): 614-954 x 898 x 500
- Dimensions recirculating (HxWxD mm): 614-1064 x 898 x 500
- Dimensions recirculating with CleanAir module (HxWxD mm):
- 689 x 898 x 500- mounting with outer chimney
- 795-1139 x 898 x 500 - mounting with telescopic chimney
- Suitable for ducted or recirculating operation
- Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
- Electrical cable lenght 1.3 m
- Voltage: 220 - 240 V
Heating Functions

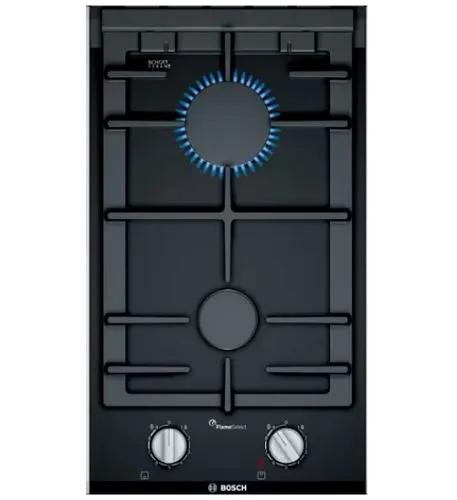

- 2 PC gas burner
- Domino - Can be combined with other Bosch hobs
- Front standard burner maximum power: 1.9 KW (depending on gas type)
- Rear centre high-speed burner maximum power: up to 2.8 KW (depending on gas type)
- Black ceramic base
- Sword control knobs
- Comfort
- Step valve 9 steps
- Cast iron pan supports
- Knob ignition

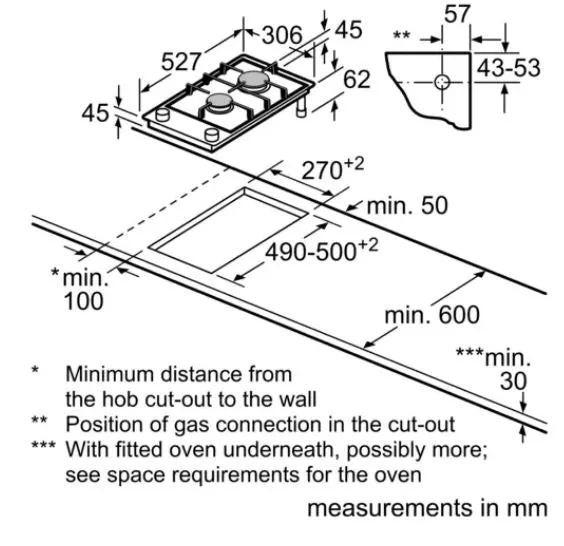

- Dimensions of the product (HxWxD mm) : 45 x 306 x 527
- Required niche size for installation (HxWxD mm) : 45 x 270 x 490 - 502
- Gas connection rating: 4700 W
- Electrical connection rating: 1.1 W
- Length of mains cable: 150 cm
- Plug type: GB plug

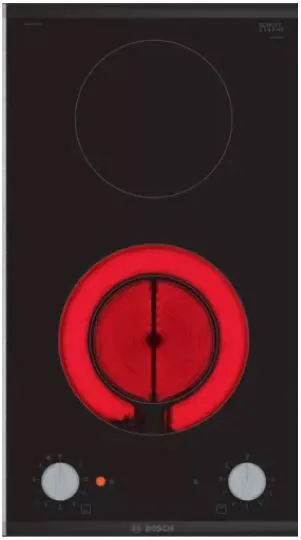

3. PKF375CA2E
- Type of appliance width (cm) 30 cm
- Total number of positions that can be used at the same time 2
- Basic surface material Ceramic
- Main colour of product Black
- Energy consumption of hob 194.6 Wh/kg
- Dimensions of the product (mm) 48 x 306 x 527 mm
- Minimum height for installation (mm) 48 mm
- Maximum height for installation (mm) 48 mm
- Minimum width for installation (mm) 270 mm
- Maximum width for installation (mm) 270 mm
- Depth for installation (mm) 490 mm
- Appliance height above the worktop 6.0 mm
- Connection Rating (W) 3,200 W
- Current (A) 16 A
- Voltage (V) 220-240 V
- Length electrical supply cord (cm) 100.0 cm
- Plug type no plug
