Product Details
＋

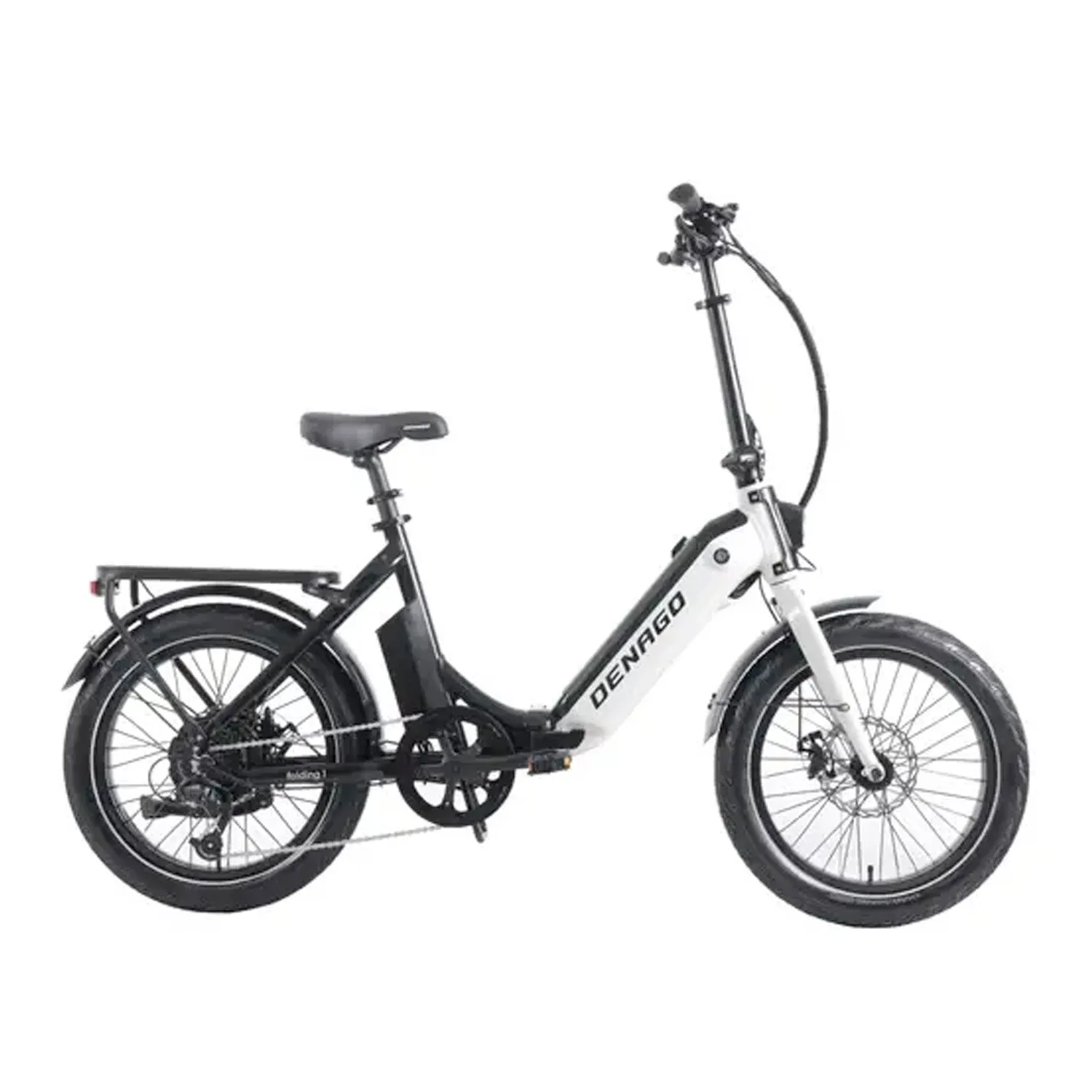

The Denago folding eBike is a powerful, compact model ideal for van life, RV travel, or anywhere with limited storage space. When folded, it fits into a compact space just 20" wide, 35" long, and 30" tall.
Easy to store and transport thanks to a folding frame, pedals, and handlebar. Features both pedal assist and throttle modes with a sleek, hidden internal battery. The combo of the ultra-low standover height frame and telescoping seatpost means almost everyone can ride, regardless of height or inseam.
Size: One Size fits most
| Brand | Denago |
| Year | 2023 |
| Model | Folding 1 eBike |
| Color | Black/White |
| Style of Bike | E-Bike |
| Frame Size | 6061-T6 Aluminum Alloy, Step-thru style, Folding |
| Fork | Rigid |
| Pedals | Folding, 9/16” with reflectors |
| Crankset | Aluminum alloy, 170mm, 48 tooth chainring, with chainguard |
| Bottom Bracket | Sealed, square taper, English thread |
| Rear Derailleur: | 7-speed |
| Freewheel | Shimano CS-HG200-7, 7-speed, 12-32 teeth |
| Shifter | 7 speed with optical gear display |
| Chain | KMC Z7, 3/32” |
| Handlebar | Zoom, aluminum alloy, 25.4mm diameter, 620mm long |
| Grips | Black rubber, lock-on style |
| Stem | Zoom aluminum alloy, 25.4mm clamp, 1 ⅛” threadless, adjustable height, folding |
| Headset | 1 ⅛”, sealed, threadless |
| Saddle | Denago Comfort |
| Seatpost | Zoom aluminum alloy, 34.9mm diameter, 347-552mm telescopic |
| Seatpost clamp | Zoom, quick release |
| Levers | Jak mechanical disc brake with motor cut-off |
| Calipers | Jak mechanical disc brake |
| Rotors | 180mm, 6 bolt type |
| Tires | 20x3", anti-puncture, safety reflective stripe, eBike-rated |
| Tubes | 20x3", schrader valve |
| Rims | Aluminum Alloy, 36 holes, 20" |
| Hubs | Front - Joytech nutted, 36 holes, disc brake Rear - Shengyi, nutted 36 holes, disc brake |
| Spokes | Front - 36 Black 13 gauge spokes Rear - 36 Black 12 gauge spokes |
| Nipples | Brass |
| DIMENSIONS WHEN FOLDED | Just 20" wide, 35" long, and 30" tall |
| Complete eBike with battery: | 62 lbs |
| Maximum rider weight: | 300 lbs |
| Maximum Cargo Capacity | 35 lbs on the included rear rack 20 lbs on the optional head-tube mounted front rack, if installed |
| Top Speed | 25 MPH on the pedal assist, 20 MPH on the throttle (Class III eBike) |
| Motor | Shengyi rear hub, 48V, 500W, IPX5 Water-Resistant rated |
| Battery | 672 Wh (48V, 14 Ah) with LG cells, IPX6 Water-Resistant rated |
| Sensors | Cadence, Speed |
| Throttle | Thumb throttle lon eft side |
| Display | Denago high-resolution LCD with speed, trip distance, odometer, trip time, battery charge level, and walk mode functions; plus integrated front and rear light controls. |
| Charger | Multi-voltage 110-240V, 3A Fast Charger with USA plug |
| UL Certification (as of manufacture date October 1, 2023): | UL 2849 certified, with a UL 2271 certified battery |
| Safety Data Sheets (SDS): | Denago safety data sheets are available upon request via email. |
