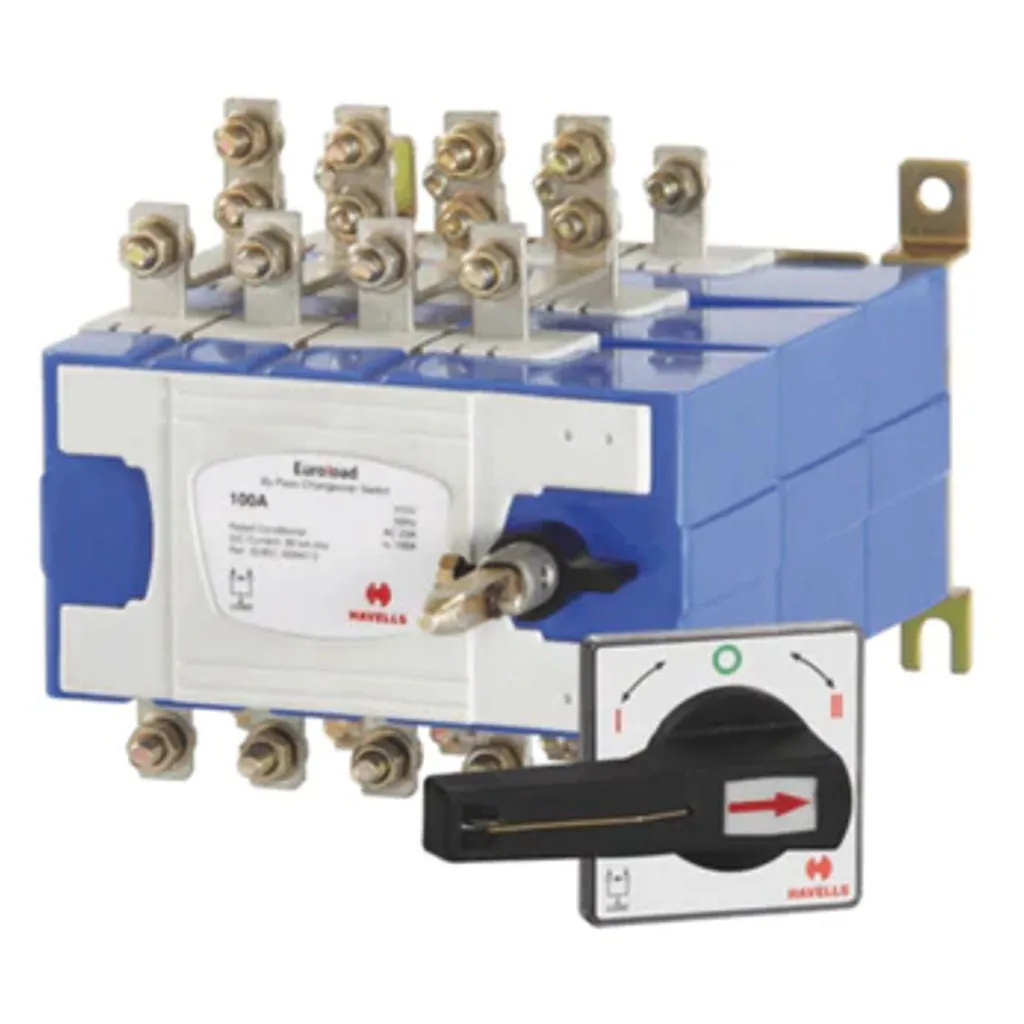

Product Description

Widest Range from 63A - 100A

Offers widest Range of Operational Current depending on Load Requirement

Four Pole with Advance Neutral

Neutral Pole makes First and breaks Last thereby providing Safety

Separate Main and Arching contacts

During Breaking operation, Arching takes place only on Arching Contacts thus increasing life of Switch

Detailed Features

Totally Enclosed Mechanism

Allows for dustproof and Smoother operation

Extended Outgoing Terminals

Provides ease of Termination

Line & Load Reversibility

Allows flexibility for Source & Load connections

Add-On Auxiliary Switch - Phase Barriers

It enables facility for signalling indications and interlocking in circuits

Adjustable operating shaft

Allows for ease of mounting within the depth of the panel

Handle with door interlock and padlock facility

Enables safety during Operation / Non Operation of the Switch

Choice of Usage

Available in OE / SS enclosure

Product Specifications

Basic-Features

Standard conformity: IS / IEC 60947-3

Rated operational voltage: 415V AC

Rated impulse voltage: 1000V AC

Utilisation Category: AC-23A

Rated frequency: 50Hz

Operating altitude: 2000 metres

Humidity: 0 - 90%

Rated impulse voltage: 8 kV

Rating Range: 63A - 100A
