30MM ALLOY BIKE CRANK SPINDLE SPACERS AND PRE-LOAD DEVICES

About our alloy bike spacers for 30mm spindles: These high-quality 30mm alloy bike crank spindle spacers allow you to correctly align any compatible crank set in any frame bb shell, especially those in the new generation of asymmetric frames. Replacement spacers work with both Road and MTB bikes.

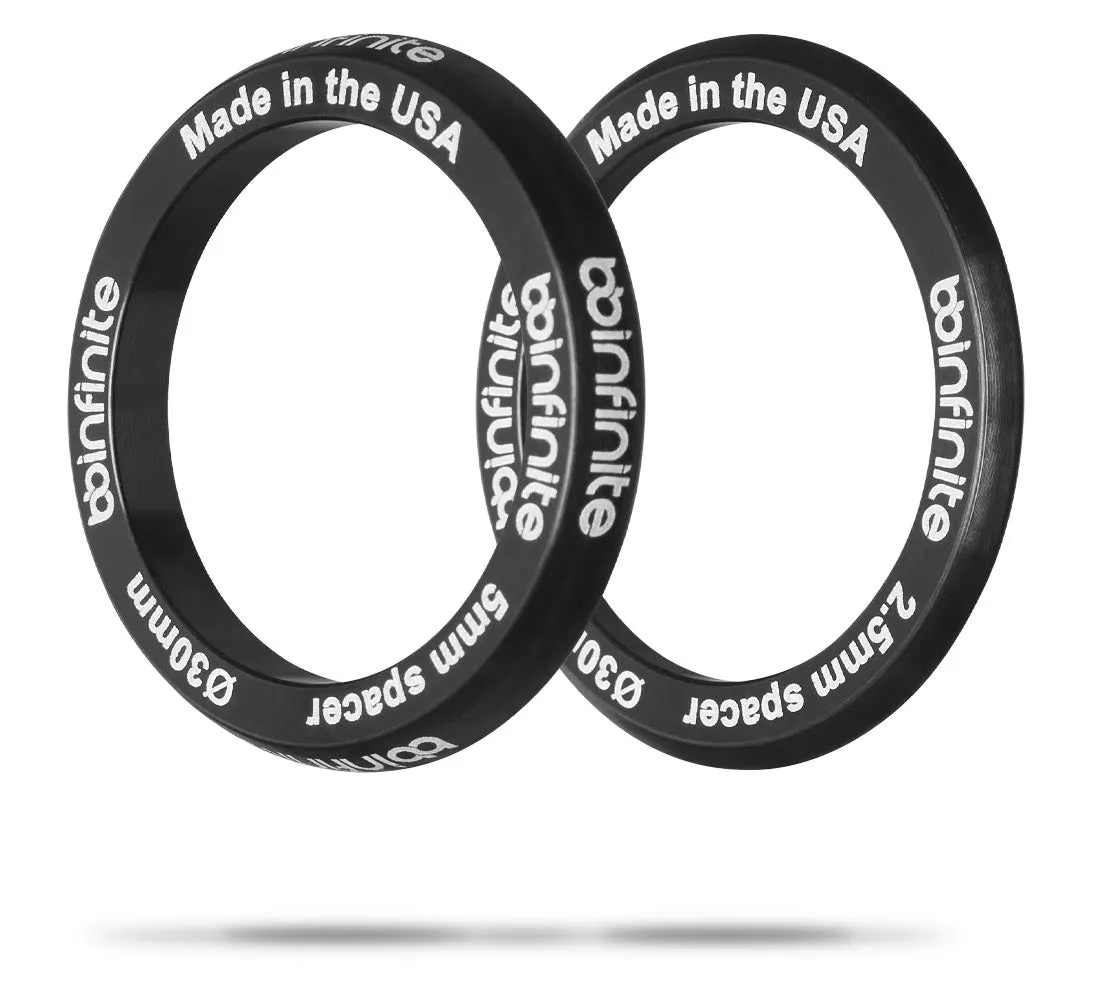

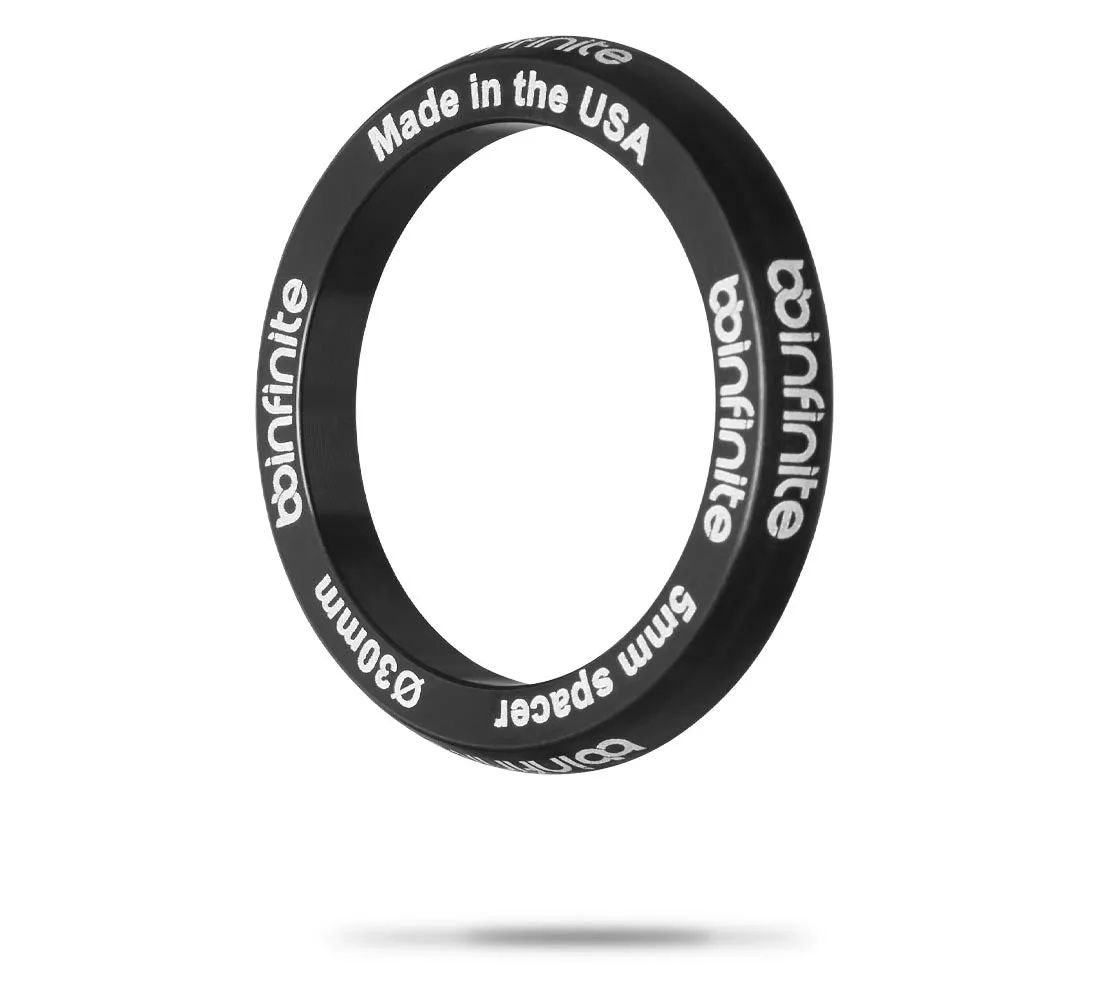

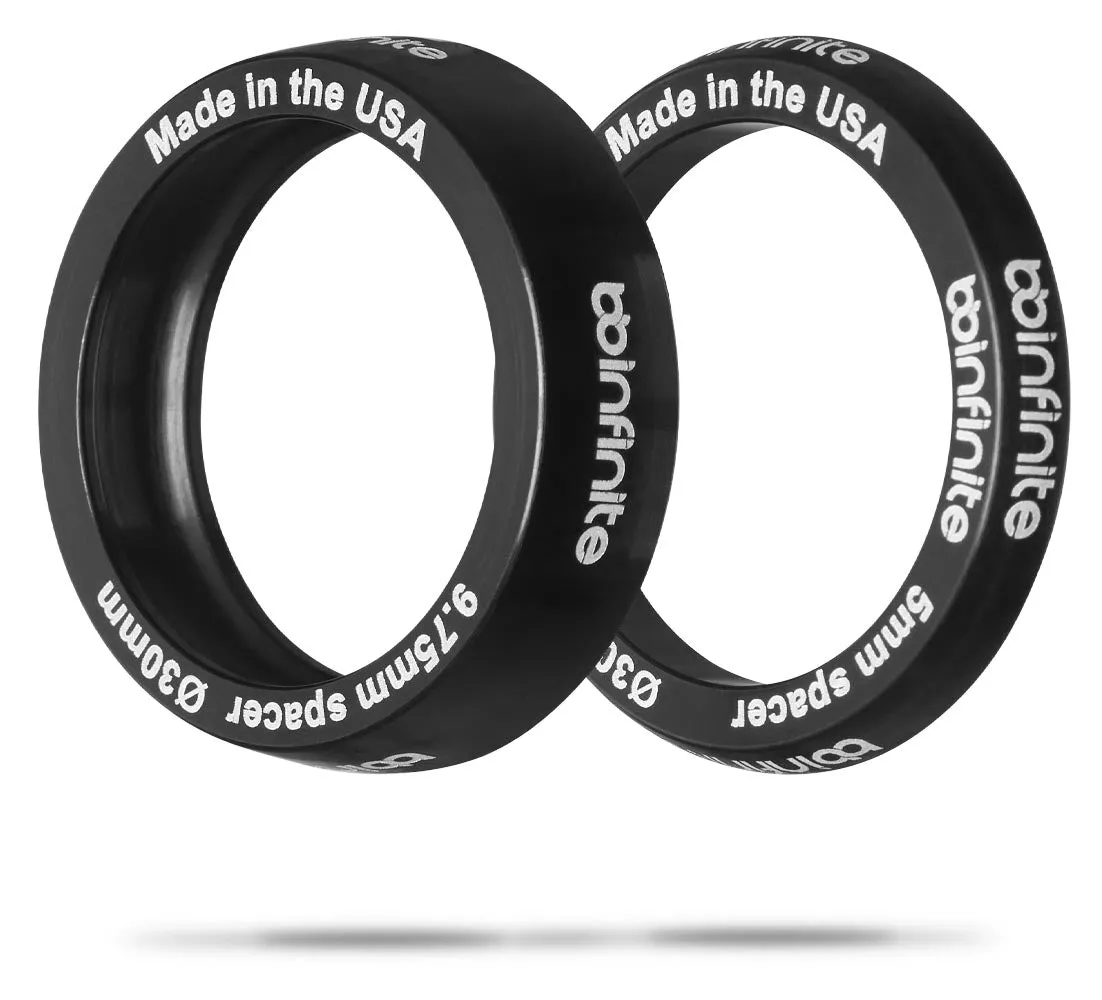

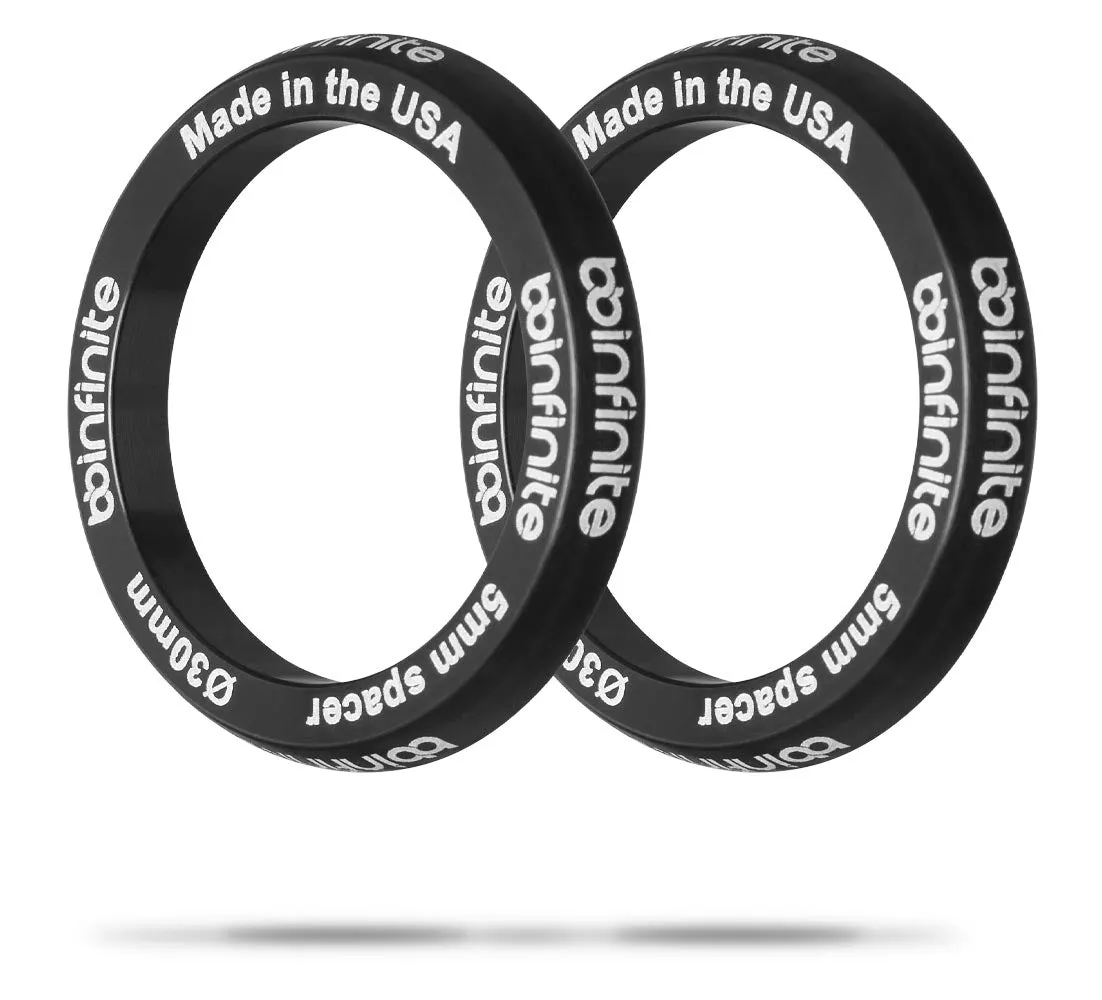

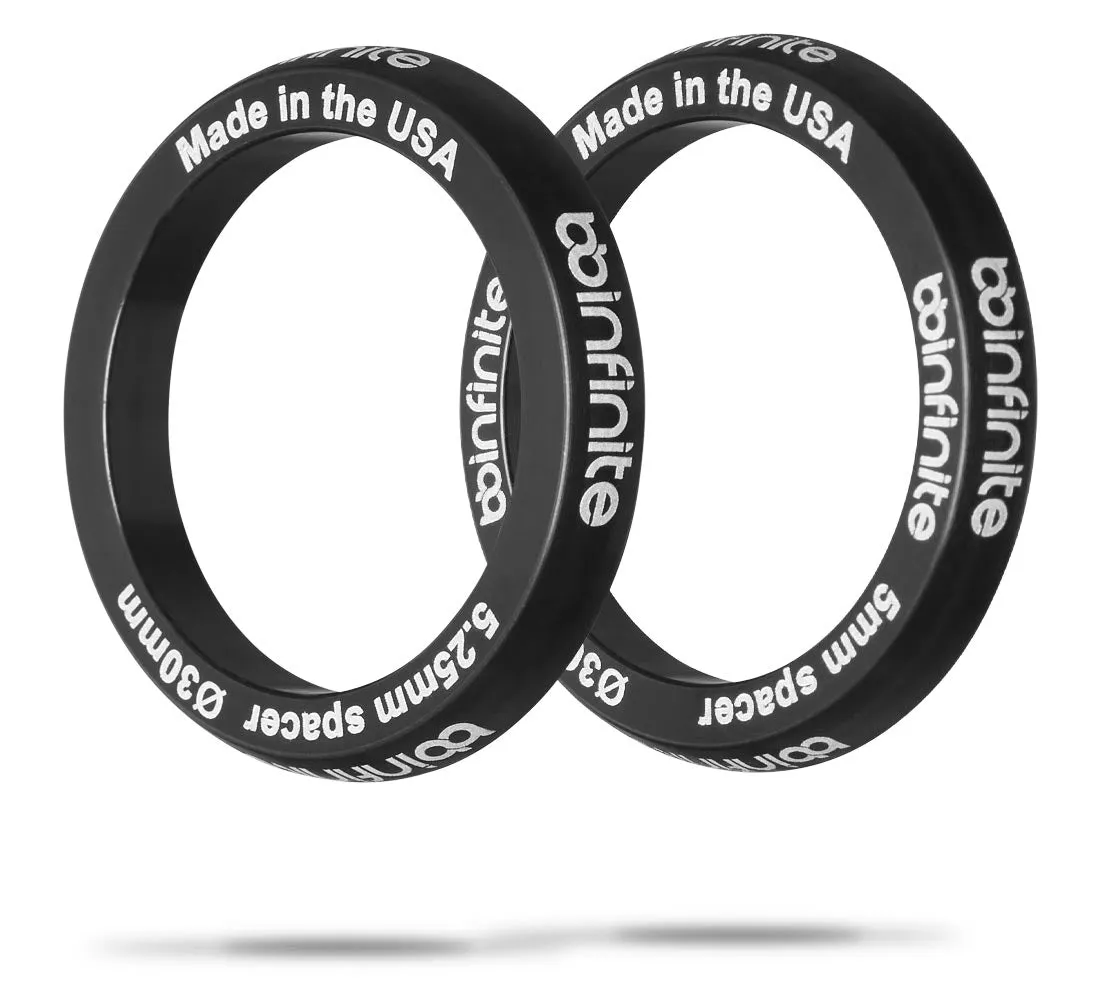

5mm 10mm spacers for long spindle, or any "386Evo" format crank fitted to BB30A and PF30A (73mm asymmetrical bb's).

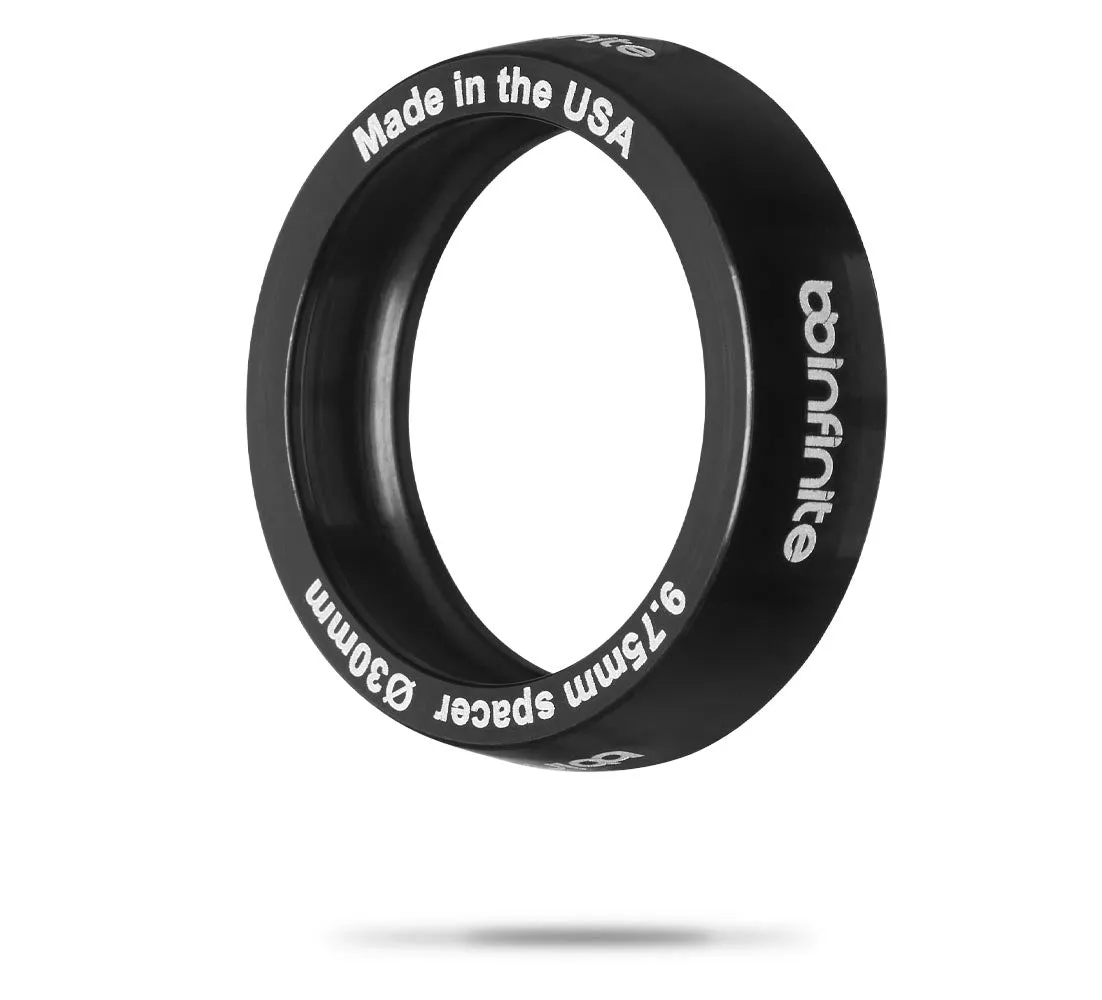

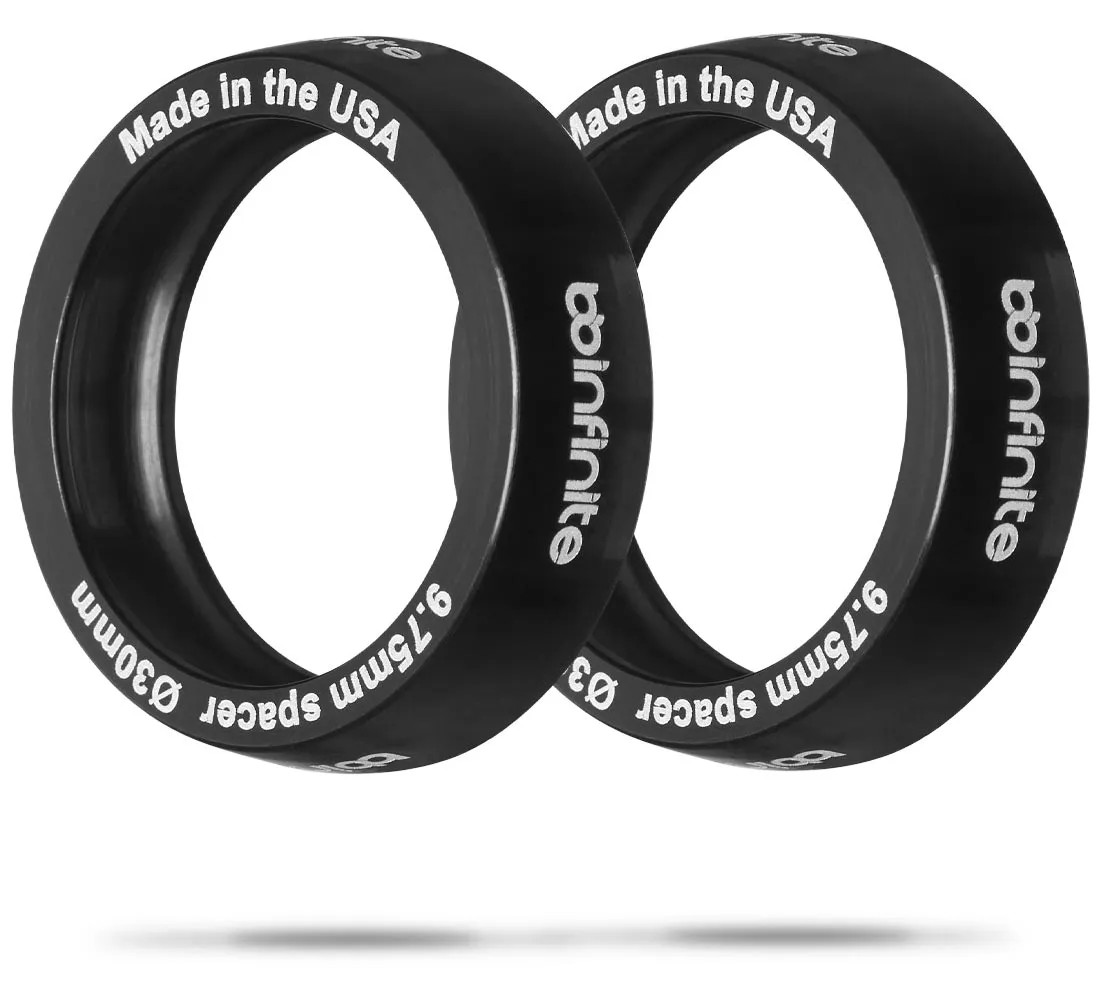

10mm is for Cervelo BBRight drive side only. There is no need for a spacer on the non-drive side.

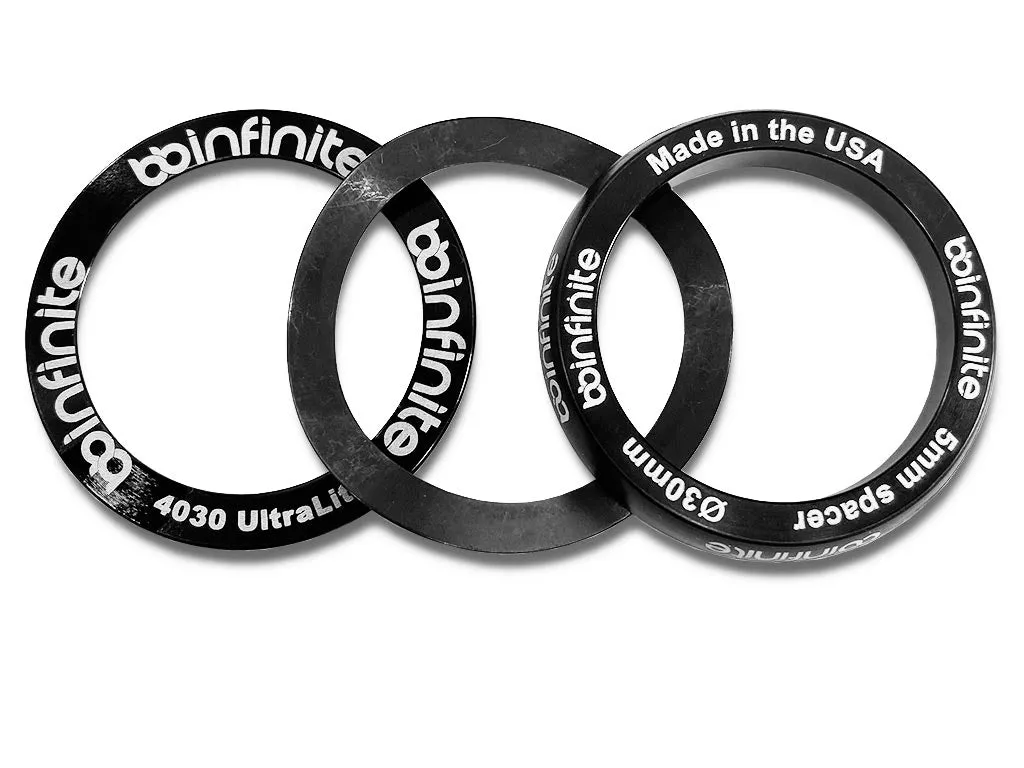

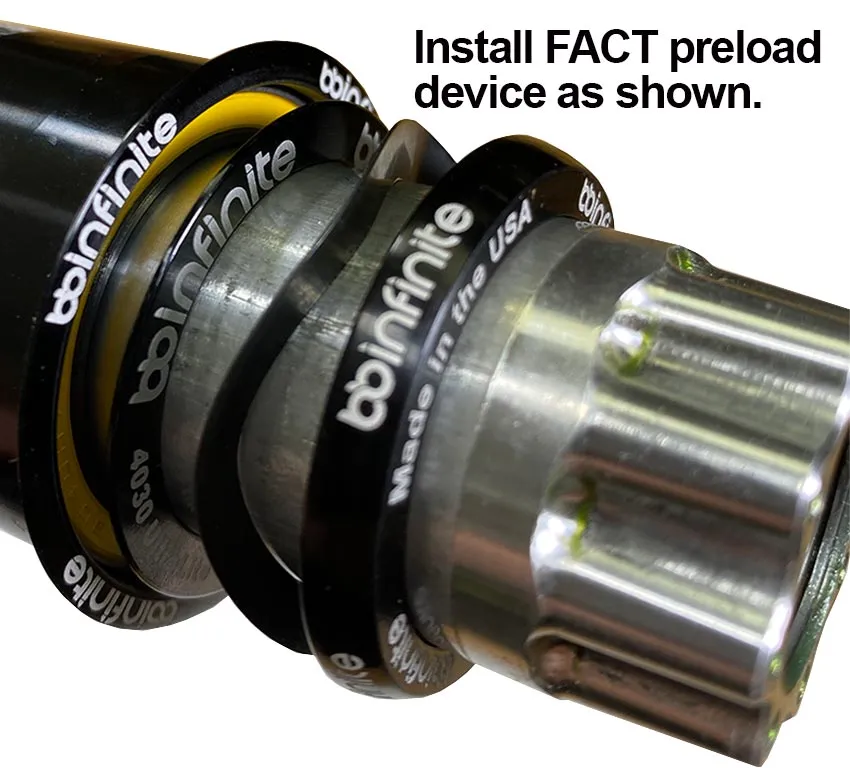

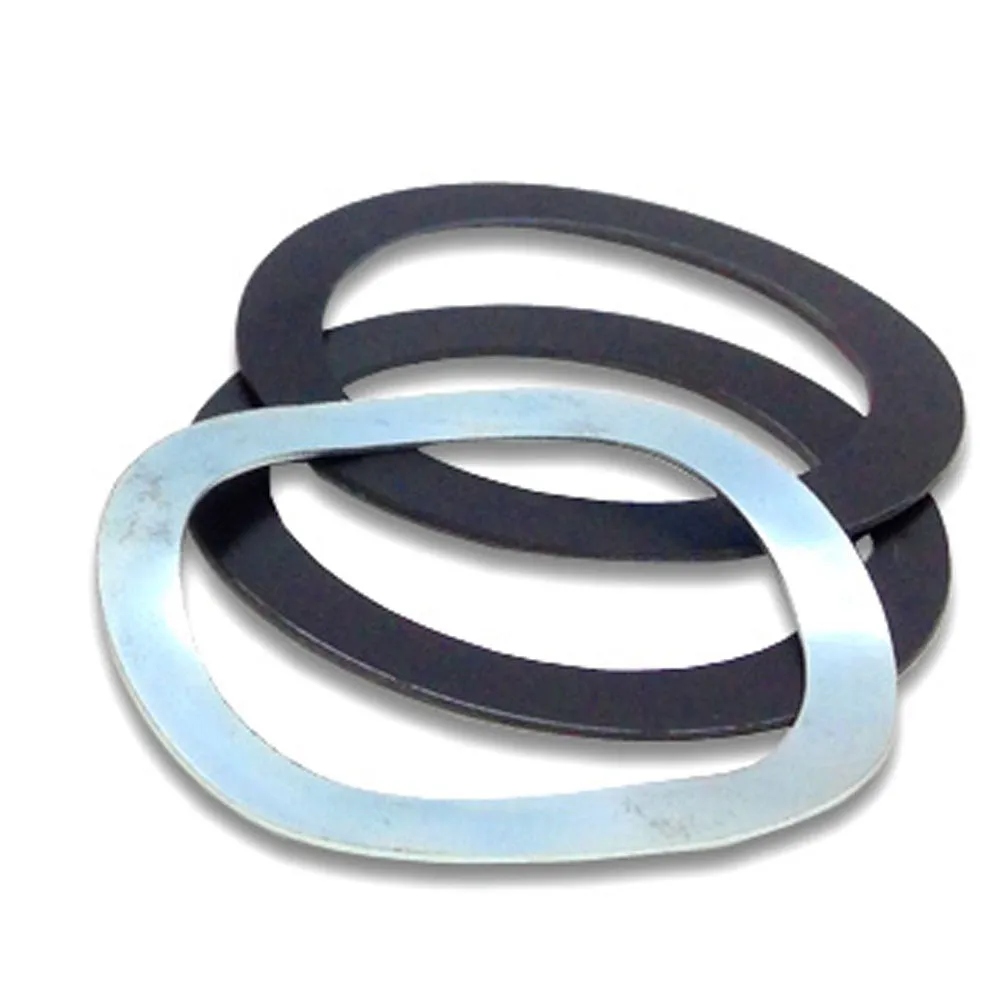

Our Wave Washer (qty 1) and 0.5mm (qty 2) Shim Kit for 30mm crank sets fit all 30mm spindle crank sets. Kit contains:1 x wave spring washer and 2 x 0.5mm.

If you are fitting a long spindle "386Evo" format crank on a BB30 or PF30 road (68mm) system, you will need two 10mm bearing spacers, one on each side.

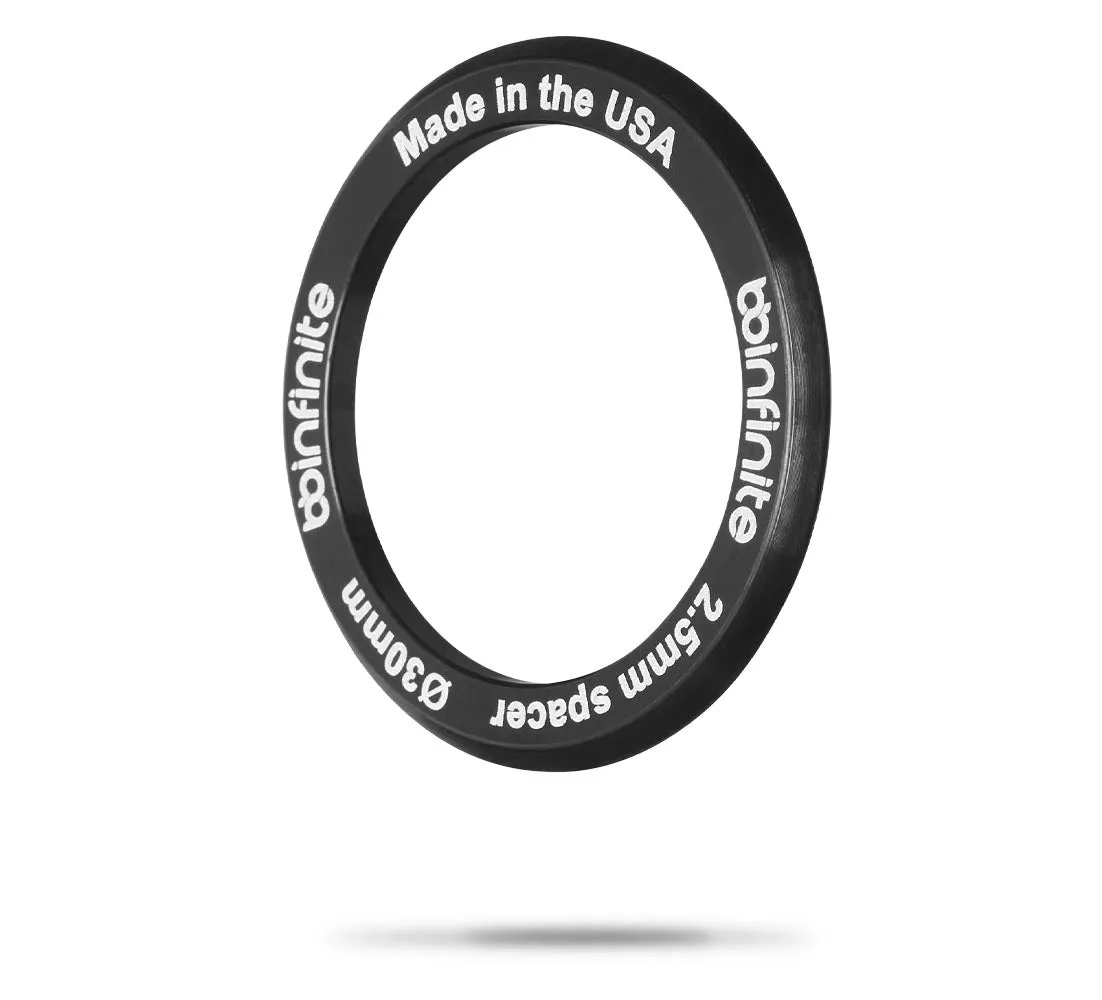

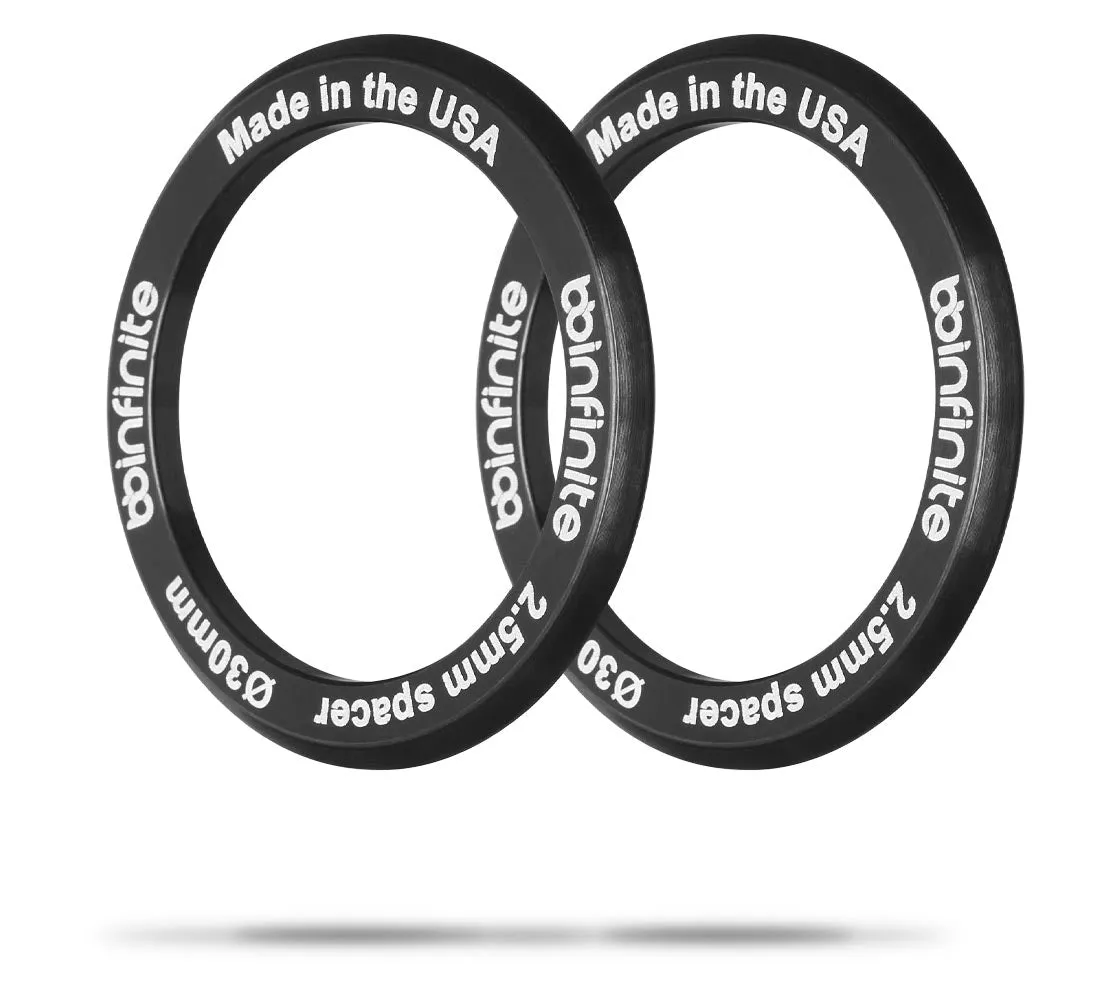

2.5mm spacers are typically used with modules to fit RaceFace Cinch XC spindle-length cranks and ee-Wings. Also used on any BB86 module running an Easton EC90 Cinch.
