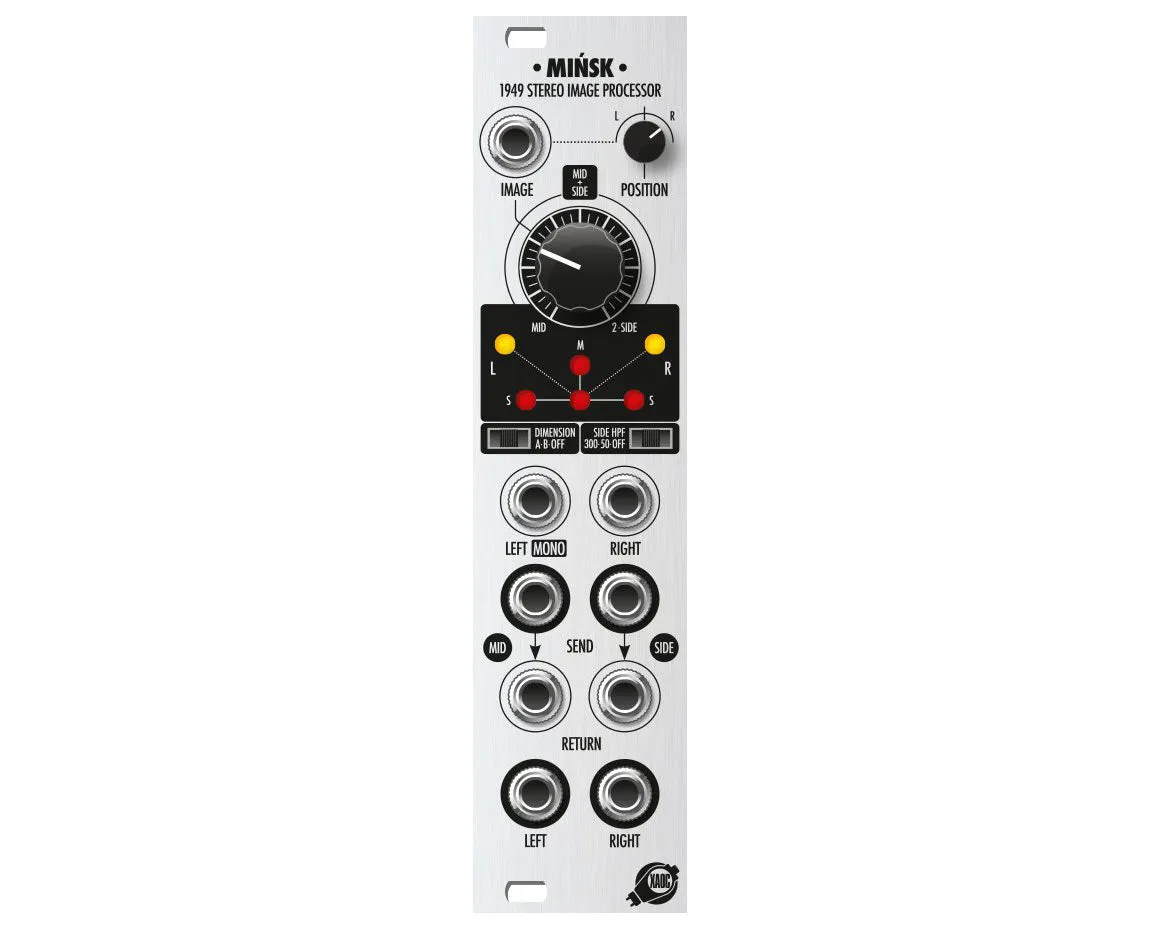

Mińsk is a stereo image processor. It is a hybrid tool that combines digital and analog processing to facilitate advanced mid/side (M/S) manipulation of a stereo signal pair. It allows for separate treatment of the mid and side components, which affects the depth and width of the auditory scene.

Mińsk offers both manual and voltage control of the stereo width, as well as two dimension effects for enhancing the existing stereo image or creating a faux stereo image based on the stereo or mono input source. Because it can eliminate out-of-phase low-end frequencies, Mińsk is especially handy during the preparation of a vinyl release or before a club concert.

Features:

• Image knob and image CV input for manipulating the stereo width
• Position knob for balance control at stereo output
• 6 LEDs for stereo width and phase display
• Switchable high-pass filter (50Hz / 300 Hz) for the side signal
• Mono/stereo audio input
• Send/return sockets for centre and side signal
• Stereo output
• Current consumption: 140 mA ( 12 V) / 40 mA (-12 V)
• Width: 6 HP
• Depth: 32 mm

Video:

Product Specs

• Item Number: 20910
• Make:
• Model:
• Condition:
• Finish: Silver
• Categories: ⇒
• Function:
• Made In: Poland
• MPN: XAOC-MIN
• Modular Grid: Eurorack
• Dimensions: 6 HP
• Power: 140 mA 12V 40 mA -12V 0 mA 5V
